Seat Belt Stuck

Any Technical Queries? This is the place to ask/give advice.
Post Reply
User avatar
Jezza
Posts: 168
Joined: Tue Oct 21, 2008 10:21 pm
Location: Stoneleigh, Warks

Seat Belt Stuck

Post by Jezza » Tue Jun 12, 2012 6:39 pm

Has anyone ever had a problem with the front seat belts on the ERA sticking?

My passenger belt is seized in the fully retracted position and has so far refused to budge. I had to drive all the way back from North yorks yesterday with my passenger unbuckled whilst keeping a look out for police cars.

I have not yet had a proper chance to look at it but suggestions are welcome. Interestingly I recall the drivers belt was 'seized' when i originally test drove the car in 2008 so it may be a common issue?
Jeremy Harris

G543 TFK

R1041 BRG

User avatar
G96LUE
Posts: 466
Joined: Wed May 23, 2007 7:21 pm
Location: Walsall

Re: Seat Belt Stuck

Post by G96LUE » Fri Jun 15, 2012 6:53 pm

Not had one stick on a mini for a very long time and i think it was a problem with the inertia weight.
If it was any other mini i'd suggest removing the bolt from the pocket and lift the mechanism up and this will probably release the weight.
Having the leather pocket top though might make this more difficult as i don't know how easy the top is to remove.
You could try removing the shoulder level bolt and seeing if just feeding the belt back a bit more will release it.
Hope this helps.

p.s. If you do end up taking the leather pocket top off can you take a pic of the back of it for me so i can see if i can make one for mine. Ta :)

User avatar
Jezza
Posts: 168
Joined: Tue Oct 21, 2008 10:21 pm
Location: Stoneleigh, Warks

Re: Seat Belt Stuck

Post by Jezza » Sun Jun 17, 2012 11:51 am

I have removed the belt which refused to budge and am now on the look out for a replacement - seems a strange colour, not really grey and more of a beige?

Any one bought one before and know a good supplier for a similar belt?
Jeremy Harris

G543 TFK

R1041 BRG

User avatar
Jezza
Posts: 168
Joined: Tue Oct 21, 2008 10:21 pm
Location: Stoneleigh, Warks

Re: Seat Belt Stuck

Post by Jezza » Sun Jun 17, 2012 12:27 pm

Have decided to buy 2 secondhand grey belts from Classic Mini Parts for £50 plus delivery so at least they will match (and the drivers belt is a bit dodgy in any case).

Here are some pics of the rear bin box trim - secured with three fixings.
Attachments
Leather rear bin - Mini.jpg
Leather rear bin - Mini.jpg (114.36 KiB) Viewed 9979 times
Rear Leather Bin - Mini ERA.jpg
Rear Leather Bin - Mini ERA.jpg (103.72 KiB) Viewed 9979 times
Jeremy Harris

G543 TFK

R1041 BRG

User avatar
G96LUE
Posts: 466
Joined: Wed May 23, 2007 7:21 pm
Location: Walsall

Re: Seat Belt Stuck

Post by G96LUE » Mon Jun 18, 2012 8:14 pm

Jezza wrote:Have decided to buy 2 secondhand grey belts from Classic Mini Parts for £50 plus delivery so at least they will match (and the drivers belt is a bit dodgy in any case).

Here are some pics of the rear bin box trim - secured with three fixings.
Thanks for the pictures Jeremy.

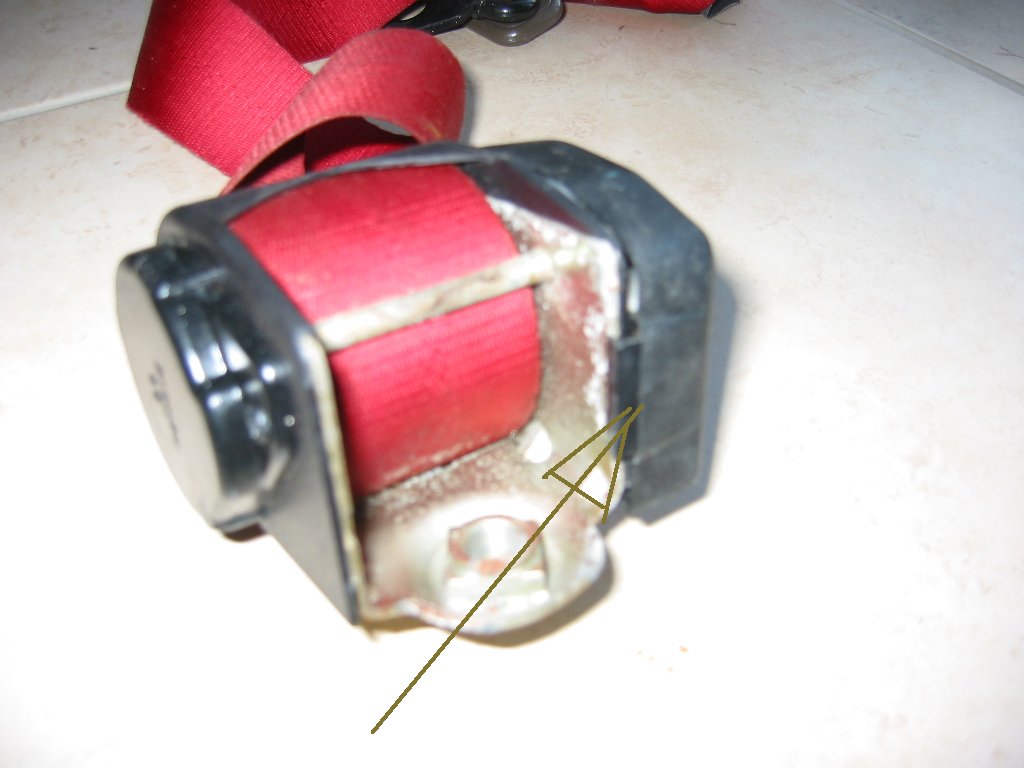

With your old belt you should be able to unclip the plastic cover on the side of the housing, this will expose the inertia part.

Unclip the large tag at the bottom.
You will then see all the locking mechanism.
You will probably find the blue bit is stuck up.

Worth a look if it isn't working.
The spring is at the other end so don't remove that bit.
Attachments

User avatar
Jezza
Posts: 168
Joined: Tue Oct 21, 2008 10:21 pm
Location: Stoneleigh, Warks

Re: Seat Belt Stuck

Post by Jezza » Thu Jun 21, 2012 5:42 pm

Useful advice - pity I didn't see i before i unscrewed tthe other end and 'unleashed' the spring................

Still new belts in the post hopefully.
Jeremy Harris

G543 TFK

R1041 BRG

User avatar
G96LUE
Posts: 466
Joined: Wed May 23, 2007 7:21 pm
Location: Walsall

Re: Seat Belt Stuck

Post by G96LUE » Fri Jun 22, 2012 6:14 pm

Jezza wrote:Useful advice - pity I didn't see i before i unscrewed tthe other end and 'unleashed' the spring................

Still new belts in the post hopefully.
Doh! :(

Sorry i wasn't quicker
